Drop Tube (Shot & Pwd Side - 12, 16), (Pwd Side - 20)

Spindex Star Crimp - 12 Gauge ( 6 Point)

Spindex Star Crimp - 12 Gauge ( 8 Point)

Spindex Star Crimp - 16 Gauge ( 6 Point)

Spindex Star Crimp - 16 Gauge ( 8 Point)

Spindex Star Crimp - 20 Gauge ( 6 Point)

Spindex Star Crimp - 20 Gauge ( 8 Point)

Spindex Star Crimp - 28 Gauge ( 6 Point)

Spindex Star Crimp - 410 Bore ( 6 Point)

8567N GRABBER PARTS

Shop Products

Shop Products

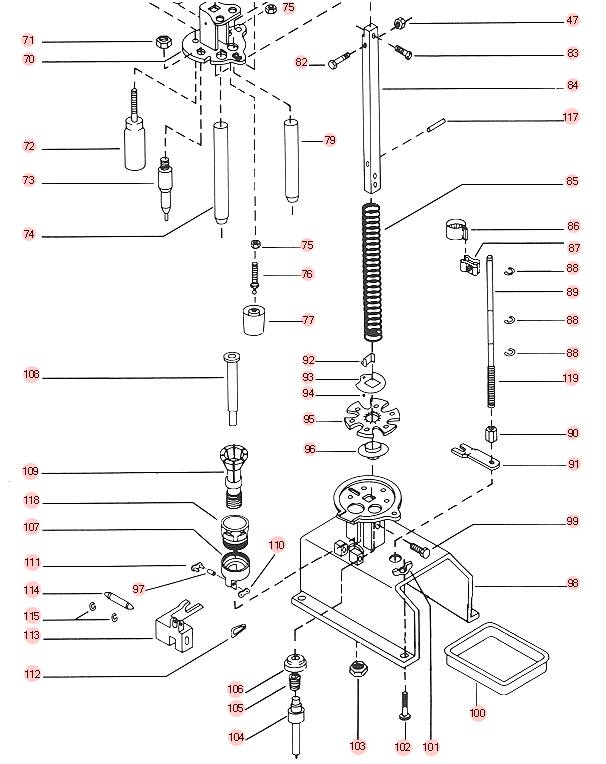

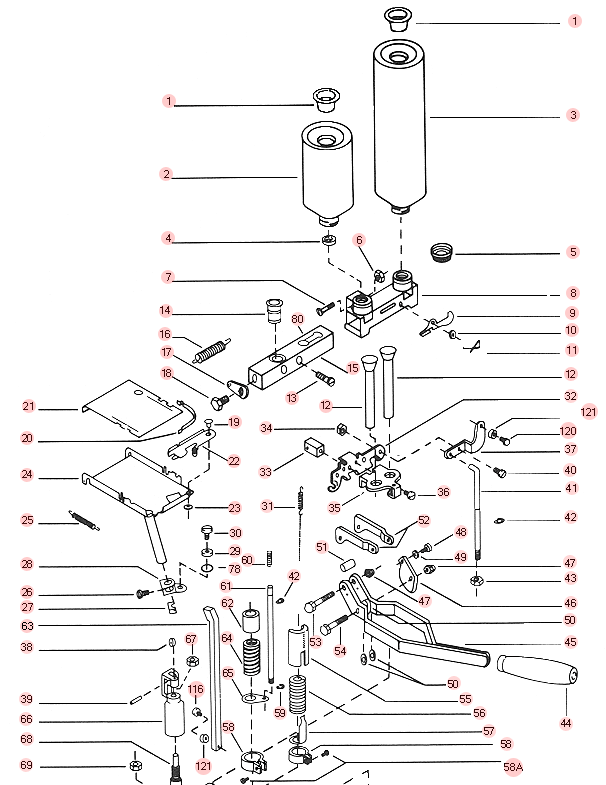

	Article	Code	Price	Stock
	Drop Tube (Shot & Pwd Side - 12, 16), (Pwd Side - 20)	1008205	£9.72	Yes	add
	Drop Tube (Powder Side - 28, 410)	10060528	£9.72	Yes	add
	Drop Tube (Shot 28)	100820528	£9.72	Yes	add
	Primer Seat Assm-Prog 28GA	100525CA28	£23.52	Yes	add
	Primer Seat Assm-Prog 20GA	100525CA20	£23.52	Yes	add
1	Cap Plug	10013X	£1.06	Yes	add
2	Small Container With Cap	100301L13X	£16.50	Yes	add
3	Shot Container (12 inch)	1008042	£19.44	Yes	add
4	Grommet (1 Per Pack)	100304G	£1.98	Yes	add
4	Brass Washer (1 Per Pack)	100304W	£1.98	No	add
5	Bottle Cap	100304C	£1.62	Yes	add
6	Nut	HDW304J	£1.98	Yes	add
7	Measure Pivot Screw	HDW304D	£1.00	Yes	add
8	Measure Assembly	1008075	£34.90	Yes	add
9	Bar Lock	100670A	£4.38	Yes	add
10	Washer	100670G	£1.21	Yes	add
11	Lock Spring	100670B	£2.16	Yes	add
12	Drop Tube (Shot Side - 20, 28, 410)	100820528	£9.72	Yes	add
13	Screw	HDW303	£1.64	Yes	add
15	CHARGE BAR - SEE MEC ACCESSORIES SECTION	100502	On Request	No	add
16	Bar Return Spring	100573	£3.00	Yes	add
17	Spring Anchor	100572	£1.48	Yes	add
18	Column Bolt	HDW8024	£1.48	Yes	add
19	Rivet	100314A	£1.56	No	add
20	Primer Feed Spring	100285P	£2.40	Yes	add
21	Primer Tray Cover	100285ML	£7.32	Yes	add
22	Pick-Up Arm	100285G	£9.48	Yes	add
23	Retaining Ring	100285H	£1.56	Yes	add
24	Tray Assembly	100385A3	£48.00	Yes	add
25	Return Spring	100385Q	£3.00	Yes	add
26	Screw	HDW303	£1.64	Yes	add
27	Retaining Clip	100385E	£1.64	Yes	add
28	Clamp Assembly	1008209	£12.40	No	add
29	Washer	HDW609F	£1.21	Yes	add
30	Bolt	HDW685F	£1.66	Yes	add
31	Spring And Chain	1008276	£7.50	No	add
32	Mounting Bracket	1008045	£14.79	No	add
33	Block Measure Attachment	100504C	£4.72	No	add
34	Lock Nut	HDW460A	£1.00	No	add
35	Drop Tube Bracket	100670C	£6.18	No	add
36	Screw (12, 16, 20 Gauge)	HDW304L	£1.56	No	add
37	Bar Actuator	1008054	£7.92	Yes	add
38	Cam Roller Zytel Die	1008312	£1.61	No	add
39	Cam Roller Pin	100613D	£0.87	Yes	add
40	Screw	HDW570A	£2.80	No	add
41	Operating Rod	1008055CA	£13.20	No	add
42	Retaining Ring (Upper)	100670J	£1.21	No	add
43	Nut	HDW304J	£1.98	Yes	add
44	Handle Grip	1008400	£12.00	No	add
45	Handle	100609	£16.60	Yes	add
46	Crimp Die Cam	100723	£4.78	Yes	add
47	Stop Nut (14 / 20)	HDW309E	£1.03	No	add
48	Self Tapping Screw	HDW8324	£2.98	No	add
49	Washer	HDW623C	£1.66	Yes	add
50	Washer	HDW609F	£1.21	Yes	add
51	Link Spacer	100510B	£1.03	Yes	add
52	Links Kit (L & R Hand)	100610	£14.24	Yes	add
53	Handle Bolt	HDW610C	£1.58	Yes	add
54	Handle Bolt	HDW609B	£2.64	No	add
55	Pressure Indicator Face	100306F	£4.95	No	add
56	Pressure Spring	100306T	£4.91	Yes	add
57	Pointer	100306P	£3.83	No	add
58	Adjusting Clamp	100507	£3.83	Yes	add
58	Adjusting Clamp Screw	HDW507A	£3.83	Yes	add
59	Retaining Ring	100670K	£1.21	Yes	add
60	Trip Spring	100670D	£1.37	Yes	add
61	Trip Rod	100670F	£4.38	No	add
62	Spacer	1008344	£2.51	No	add
63	Actuator Rod (8118)	1008310	£13.14	Yes	add
64	Reprime Spring	1008025	£5.97	Yes	add
65	Trip Rod Bracket	100670E	£2.16	Yes	add
66	Cam Crimp Die Assembly - 12 Gauge	100621CA12	£12.96	No	add
66	Cam Crimp Die Assembly - 16 Gauge	100721CA16	£19.44	Yes	add
66	Cam Crimp Die Assembly - 20 Gauge	100621CA20	£12.96	Yes	add
66	Cam Crimp Assembly - 28 Gauge	100721CA28	£19.44	Yes	add
66	Cam Crimp Assembly - 410 Bore	100721CA410	£19.44	Yes	add
67	Lock Nut	HDW461A	£1.00	No	add
68	Cam Crimp Punch - 12 Gauge	100721B12	£11.40	Yes	add
68	Cam Crimp Punch - 16 Gauge	100721B16	£11.40	Yes	add
68	Cam Crimp Punch - 20 Gauge	100721B20	£11.40	Yes	add
68	Cam Crimp Punch - 28 Gauge	100721B28	£11.40	Yes	add
68	Cam Crimp Punch - 410 Bore	100721B410	£11.40	Yes	add
69	Lock Nut	HDW461A	£1.00	No	add
70	Turret Assembly	1008035	£57.17	No	add
71	Lock Nut	HDW459A	£1.21	No	add
72	Finish Die - 12 Gauge	10052212P	£19.32	Yes	add
72	Finish Die - 16 Gauge	10052216P	£19.32	No	add
72	Finish Die - 20 Gauge	10052220P	£19.32	Yes	add
72	Finish Die - 28 Gauge	10052228P	£19.32	Yes	add
72	Finish Die - 410 Bore	100522410P	£19.32	Yes	add
73	Deprime Punch - 12 Gauge	100810712	£15.63	Yes	add
73	Deprime Punch - 16 Gauge	100810716	£18.54	Yes	add
73	Deprime Punch - 20 Gauge	100810720	£18.54	Yes	add
73	Deprime Punch - 28 Gauge	100810728	£18.54	Yes	add
73	Deprime Punch - 410 Bore	1008107410	£18.54	No	add
74	Reprime Tube - 12 & 16 Gauge	100505C12	£18.48	Yes	add
74	See 100505C12	100505C16	On Request	No	add
74	Reprime Tube - 20 Gauge	100505C20	£18.48	Yes	add
74	Reprime Tube - 28 Gauge	100505C28	£18.48	Yes	add
74	Reprime Tube - 410 Bore	100505C410	£18.48	Yes	add
75	Nut	HDW8476	£1.82	No	add
76	Ball Pivot Pin (includes 2 x HDW8476)	1008419	£6.54	Yes	add
77	Spindex Star Crimp - 12 Gauge ( 6 Point)	1008439126	£12.00	Yes	add
77	Spindex Star Crimp - 12 Gauge ( 8 Point)	1008439128	£12.00	Yes	add
77	Spindex Star Crimp - 16 Gauge ( 6 Point)	1008439166	£12.00	Yes	add
77	Spindex Star Crimp - 16 Gauge ( 8 Point)	1008439168	£6.96	No	add
77	Spindex Star Crimp - 20 Gauge ( 6 Point)	1008439206	£12.00	Yes	add
77	Spindex Star Crimp - 20 Gauge ( 8 Point)	1008439208	£12.00	No	add
77	Spindex Star Crimp - 28 Gauge ( 6 Point)	100843928	£12.00	Yes	add
77	Spindex Star Crimp - 410 Bore ( 6 Point)	1008439410	£12.00	Yes	add
78	Lock Washer	HDW685H	£1.21	No	add
79	Rammer Tube - 12 Gauge	100505B12	£16.50	Yes	add
79	Rammer Tube - 16 Gauge	100505B16	£16.50	Yes	add
79	Rammer Tube - 20 Gauge	100505B20	£16.50	Yes	add
79	Rammer Tube - 28 Gauge	100505B28	£16.50	Yes	add
79	Rammer Tube - 410 Bore	100505BF410	£18.60	Yes	add
80	Charge Bar Rubber Insert	1008440	£3.12	Yes	add
82	Link Bolt	HDW610A	£1.66	Yes	add
83	Pivot Block Screw	HDW504D	£1.08	No	add
84	Column	1008010	£46.19	No	add
85	Column Spring	100612	£4.44	No	add
86	Wad Guide Fingers - 12 Gauge	100830012	£7.50	Yes	add
86	Wad Guide Fingers - 16 Gauge	100830016	£7.50	Yes	add
86	Wad Guide Fingers - 20 Gauge	100830020	£7.50	Yes	add
86	Wad Guide Fingers - 28 Gauge	100830028	£7.50	Yes	add
86	Wad Guide Fingers - 410 Bore	100453P410	£4.75	Yes	add
87	Wad Guide Clip Assembly	1008377	£6.84	Yes	add
88	Retaining Ring	100616A	£1.21	Yes	add
89	Wad Guide Rod - 12 Gauge	100856112	£26.40	Yes	add
89	Wad Guide Rod - 16 Gauge	100800716	£26.40	No	add
89	Wad Guide Rod - 20 Gauge	100856120	£26.40	Yes	add
89	Wad Guide Rod - 28 Gauge	100856128	£26.40	Yes	add
89	Wad Guide Rod - 410 Bore	1008561410	£26.40	Yes	add
90	Lock Nut	HDW461A	£1.00	No	add
91	Shell Lifter Bracket	1008563	£2.51	No	add
92	Index Spring	100615C	£2.77	Yes	add
93	Carrier Hold Down	100615B	£7.05	Yes	add
94	Index Ball	100515D	£1.86	Yes	add
95	Carrier - 12 Gauge	10061512	£22.14	Yes	add
95	Carrier - 16 Gauge	10061516	£22.14	Yes	add
95	Carrier - 20 Gauge	10061520	£22.14	Yes	add
95	Carrier - 28 Gauge	10061528	£22.14	Yes	add
95	Carrier - 410 Bore	100615410	£22.14	Yes	add
96	Carrier Bushing	1008112	£5.46	Yes	add
97	*See Reference Number 110	1008113	£4.91	Yes	add
98	Base Assembly - 12 Gauge	100855512	£65.00	No	add
98	Base Assembly - 16 Gauge	100855516	£65.00	No	add
98	Base Assembly - 20 Gauge	100855520	£65.00	No	add
98	Base Assembly - 28 Gauge	100855528	£65.00	No	add
98	Base Assembly - 410 Bore	1008555410	£65.00	No	add
99	Column Bolt	HDW8024	£1.48	Yes	add
100	Primer Catcher	1008067	£6.12	Yes	add
101	Wing Nut	HDW713D	£1.66	Yes	add
102	Mounting Bolt	HDW313C	£1.03	Yes	add
103	Nut	1008017	£3.27	No	add
104	Guide Post Assembly	1008944	£13.75	Yes	add
105	Spring	100630	£3.83	Yes	add
106	12 Gauge Spring Pad	10053112	£5.62	Yes	add
106	Primer Seat Assembly (Post,Spring,Pad) 12GA	100525CA12	£23.52	Yes	add
107	Closure (Bottom)	1008491	£19.27	Yes	add
108	Shell Lifter - 12 Gauge	100856012	£17.70	Yes	add
108	Shell Lifter - 16 Gauge	100856016	£17.70	Yes	add
108	Shell Lifter - 20 Gauge	100856020	£17.70	Yes	add
108	Shell Lifter - 28 Gauge	100856028	£17.70	Yes	add
108	Shell Lifter - 410 Bore	1008560410	£17.70	Yes	add
109	Collet - 12 Gauge	100808012	£62.70	Yes	add
109	Collet - 16 Gauge	100808016	£62.70	Yes	add
109	Collet - 20 Gauge	100808020	£62.70	Yes	add
109	Collet - 28 Gauge	100808028	£62.70	Yes	add
109	Collet - 410 Bore	1008080410	£62.70	Yes	add
110	Chain Link With Keeper	1008032	£5.40	Yes	add
111	Chain Link With Keeper	1008032	£5.40	Yes	add
112	Chain Link With Keeper	1008032	£5.40	Yes	add
113	Return Bracket	1008608	£22.89	No	add
114	Pivot Pin	1008022	£2.16	Yes	add
115	Retaining Ring	1008023	£1.21	No	add
116	Cam Roller Kit	1008735	£6.00	No	add
117	Hold Down Pin	1008348	£0.90	No	add
118	Collet Closure Assembly	1008018HB	£31.20	Yes	add
119	Wad Guide Spring	1008724	£2.32	Yes	add
120	Cam Roller Kit	1008735	£6.00	No	add
121	Cam Roller	100623B	£2.77	Yes	add
122	Hydraulic Pump	100690	£878.22	No	add
123	Hose Assembly	100690A	£62.18	No	add
124	Hydraulic Cylinder Kit	1008877	£248.85	No	add
125	Roll Pin	100691B	£1.01	Yes	add
126	Bolt	HDW110A	£1.06	No	add
127	Pivot Bracket	100691A	£13.00	No	add
128	Jam Nut	HDW691D	£0.99	No	add
129	Formed Spacer	100691E	£5.04	No	add
130	Link Strap	100694	£5.35	No	add
131	Truss Rod Rh	1008057	£18.44	No	add
132	Truss Rod Lh	1008058	£10.81	No	add
133	Link Lh	1008071	£10.81	Yes	add
134	Link Rh	1008072	£10.81	Yes	add
